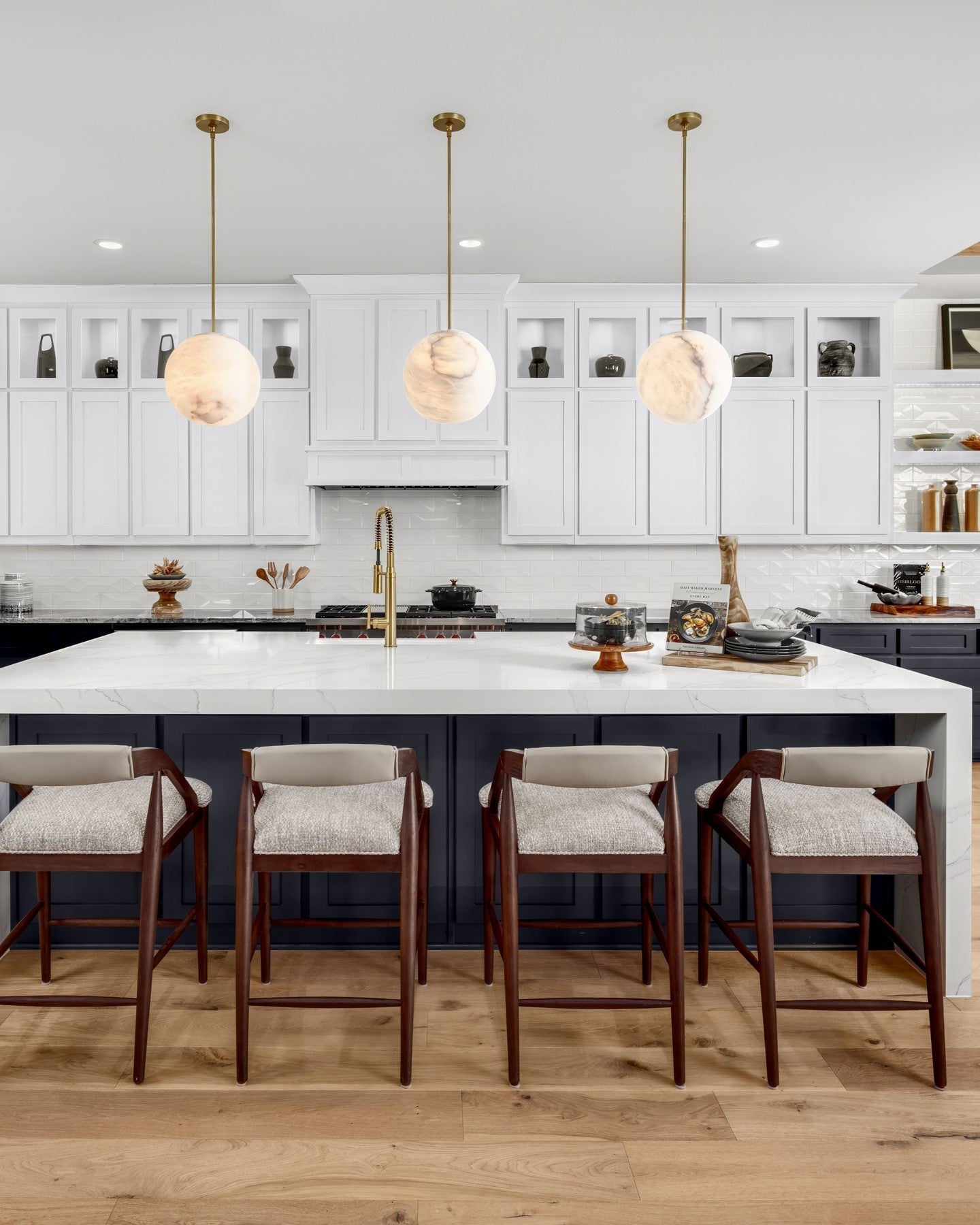

Kitchen Island Pendant Light Spacing Guide: Size, Height & Layout

For many kitchen-island layouts, test 30 to 36 inches between the countertop and the pendant’s lowest point as a planning range. For the horizontal layout, test 12 to 18 inches from each island end to the center of the first and last pendant, then calculate the center-to-center spacing from the island length, fixture count, and actual pendant width.

Do not choose two, three, or four pendants from island length alone. A wide stone or glass pendant needs a different layout from a narrow cylinder, even when both are used over the same island. Before electrical boxes are finalized, mark every full fixture outline and check edge clearance, the gap between fixtures, sightlines, seating, the sink or cooktop, cabinet movement, and views from adjoining rooms.

Start With Four Verified Measurements

Record the actual island and fixture measurements before deciding how many pendants to use. The useful starting inputs are:

Also record island width, countertop height, ceiling height, junction-box locations, fixture body height, suspension limits, and the location of seating, faucets, sinks, cooktops, cabinet doors, and major walkways.

Use a Center-to-Center Spacing Formula

For two or more identical pendants placed in one straight row, use this layout method:

The current page uses 24 to 30 inches between pendant centers as a first planning range and 30 to 36 inches for wider fixtures. Those figures are not fixed requirements. The calculated fixture-edge gap, island overhang, fixture shape, light distribution, and room sightlines determine whether the layout actually works.

Worked Spacing Example for Three Pendants

Assume a hypothetical island is 96 inches long, the layout uses three equal 14-inch-wide pendants, and the first and last pendant centers are each tested 15 inches from the island ends.

1. Usable center-line length: 96 − 15 − 15 = 66 inches.
2. There are two spaces between three pendant centers.
3. Center-to-center spacing: 66 ÷ 2 = 33 inches.
4. Clear gap between 14-inch fixture bodies: 33 − 14 = 19 inches.
5. Fixture edge to island end: 15 − 7 = 8 inches.

This example demonstrates the calculation; it does not declare the layout suitable. Create full-size 14-inch templates and review whether the 8-inch end clearance and 19-inch fixture gap look balanced, keep the light over the working surface, and preserve clear views. If they do not, adjust the count, pendant width, or end-center inset and calculate again.

How High Should Pendants Hang Above the Island?

Use 30 to 36 inches from the countertop to the lowest point of the pendant as a planning range. Test the higher end when a fixture is visually dense, the kitchen needs longer sightlines, or a tall user will work or sit beneath the light. Test the lower end only when the fixture remains clear of heads, conversation, faucets, cabinet movement, and the primary view across the room.

To calculate the total ceiling-to-lowest-point drop:

1. Measure the finished floor-to-countertop height.
2. Add the selected countertop-to-fixture planning clearance.
3. Subtract that result from the finished ceiling height.

Hypothetical Hanging-Height Example

If the countertop is 36 inches above the floor and the layout tests a 32-inch countertop clearance, the pendant’s lowest point is 68 inches above the floor. With a 108-inch ceiling, the total ceiling-to-lowest-point drop is 40 inches. The verified fixture body height, canopy or connection allowance, and suspension configuration must all fit within that total drop.

Fixture body height is not the same as total hanging height. Exact suitability depends on the selected size, fixture body height, suspension configuration, ceiling condition, and final installation measurements.

Choose the Pendant Count From the Fixture, Not a Quota

For an 8-foot island, compare two wider pendants and three smaller pendants with the same formula instead of assuming one count is correct. For a long island, compare multiple pendants with a verified linear chandelier. The final count should follow the selected fixture dimensions and the room—not a fixed island-length chart.

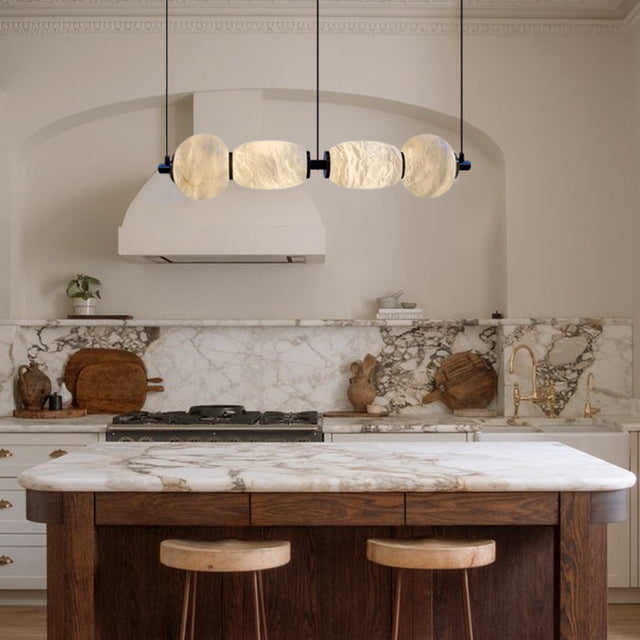

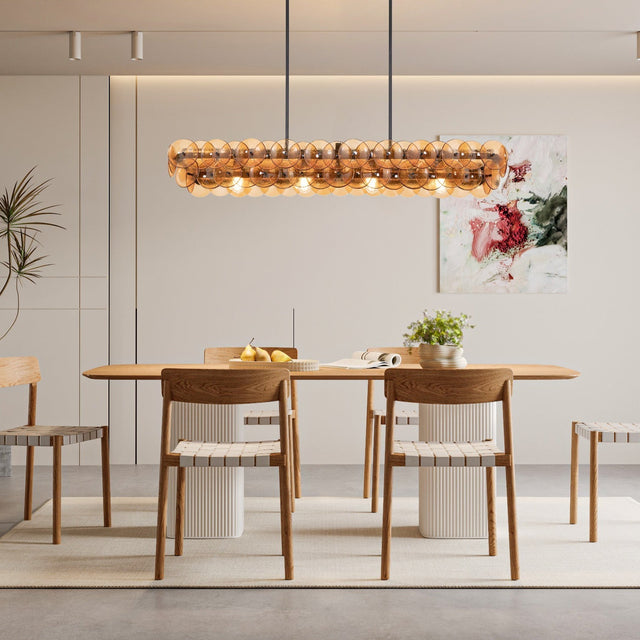

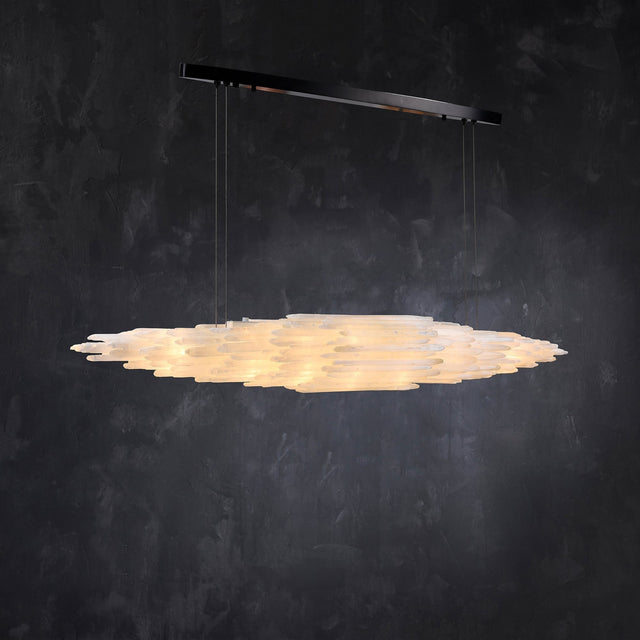

Pendants or a Linear Chandelier?

Multiple pendant lights allow the layout to follow separate work or seating zones and can be adjusted one position at a time. A linear chandelier creates one continuous form and may simplify the visual plan when the island is long or the ceiling has one usable connection point.

• Choose multiple pendants when their verified widths, output, and center positions create an even layout.
• Compare a linear fixture when several pendants look crowded or disconnected.
• Check canopy size and junction-box position before assuming either option will use the existing wiring.
• Do not infer sloped-ceiling compatibility, suspension range, weight, output, or electrical requirements from photography.

Check the Island’s Functional Zones

A mathematically even layout can still fail if it ignores how the island is used. Mark the sink, faucet, cooktop, seating, preparation area, cabinet and appliance doors, and the main view across the kitchen.

• If a pendant center falls directly in a critical sightline, test a different count or center position.
• If a wide fixture conflicts with a faucet or raised cabinet door, revise the layout or fixture width.
• If seating is concentrated on one side, check glare and head clearance from every seat.
• If the island has unequal work zones, an intentionally adjusted layout may be more useful than automatic equal spacing.
• If the kitchen opens to a dining or living room, inspect the pendant bottoms from those adjoining views.

Separate Spacing Guidance From Material Selection

This page answers the geometry question: fixture count, end-center inset, center spacing, fixture-edge gap, hanging height, and sightlines. After the layout is calculated, compare materials and styles through the appropriate product-selection paths:

• Browse pendant lights by verified width and body height.

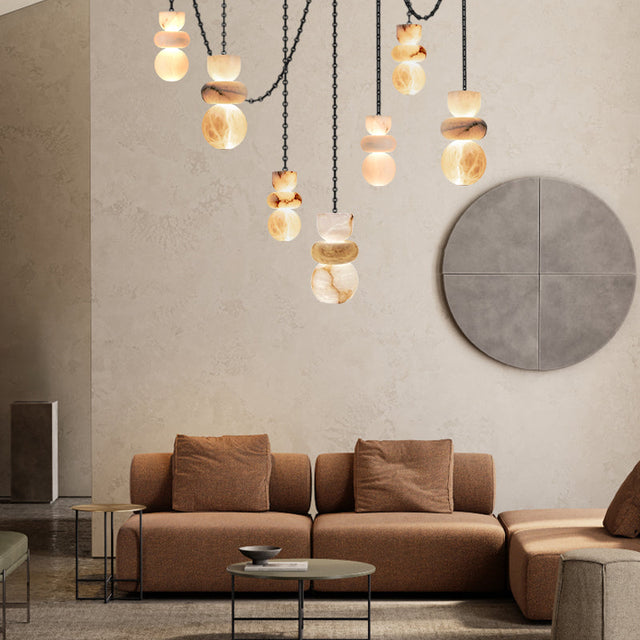

• Compare material-specific shapes in the alabaster pendant collection.

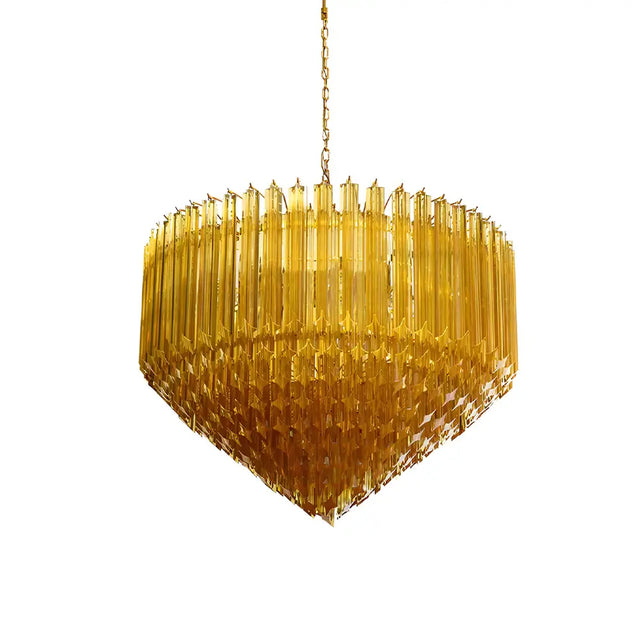

• Review decorative glass directions in the Murano-style glass lighting collection.
• Use the kitchen lighting collection to compare the island fixture with other kitchen layers.

Material affects visual weight, glare, cleaning access, and how wide the fixture appears. It does not replace the actual width and height measurements required by the spacing calculation.

Electrical Box and Canopy Checks

Do not order from a paper spacing plan until the ceiling conditions are checked. Record the number and position of current junction boxes, ceiling material, available support information, and whether the selected canopy aligns with the intended centers.

If existing boxes do not match the approved layout, stop and have a qualified professional review the options. Do not assume a canopy can conceal every offset, that a ceiling can support a selected fixture, or that hardwired boxes can be relocated without project-specific review.

Common Kitchen Island Pendant Spacing Mistakes

• Choosing the fixture count before verifying pendant width
• Confusing center-to-center spacing with the clear gap between fixture edges
• Measuring the end inset to the fixture edge in one place and to the center in another
• Using a fixed spacing range without calculating the actual island layout
• Measuring hanging height to the fixture center instead of its lowest point
• Ignoring fixture body height when calculating suspension length
• Finalizing electrical boxes before marking full-size fixture outlines
• Ignoring faucets, cabinet movement, seating, glare, and adjoining-room views

Kitchen Island Lighting Measurement Checklist

1. Measure the finished island length, width, and countertop height.
2. Measure the finished ceiling height above every intended fixture center.
3. Record current junction-box centers and canopy limitations.
4. Verify the selected fixture width, body height, mounting point, and suspension configuration.
5. Test the fixture count and end-center inset with the spacing formula.
6. Calculate both center spacing and the clear gap between fixture bodies.
7. Mark full-size fixture outlines at the proposed lowest-point height.
8. Review sightlines, seating, work zones, doors, faucets, and adjoining rooms.
9. Keep the layout provisional until the fixture and ceiling conditions are verified.

Kitchen Island Pendant Spacing FAQ

How far apart should pendant lights be over a kitchen island?

Use 24 to 30 inches between centers as a first planning range and test 30 to 36 inches for wider fixtures. Then calculate the clear fixture-edge gap from the actual pendant width. A generic range cannot replace the island-length formula and full-size layout.

How high should pendant lights hang above a kitchen island?

Use 30 to 36 inches from the countertop to the pendant’s lowest point as a planning range. Adjust for fixture body height, user sightlines, seating, faucets, cabinet movement, ceiling height, and the selected suspension configuration.

How many pendants should go over an 8-foot island?

Compare two wider pendants with three smaller pendants using the actual fixture widths, end-center insets, and calculated clear gaps. Do not select the count from island length alone.

How far from the island ends should pendant centers be?

Use 12 to 18 inches from each island end to the first and last pendant centers as a planning range. Subtract half the pendant width to understand the remaining horizontal distance from the fixture edge to the island end.

Should pendants be centered over the island or the seating?

Start with the full island surface, then check seating, sink or cooktop position, faucets, work zones, and sightlines. The useful layout may differ from a purely decorative center line when the island has distinct functional zones.

What if the electrical boxes do not match the pendant layout?

Keep the layout provisional and ask a qualified professional to review the boxes, wiring, canopy, ceiling support, and available correction options before ordering or installation.

Installation and Product Limitations

This guide provides planning methods, not electrical, structural, accessibility, or code approval. Product dimensions, weight, bulb information, wattage, certification, dimming, suspension limits, sloped-ceiling compatibility, canopy, support, and installation requirements must come from the current selected product and project conditions.

If a required product or ceiling fact is missing, pause the recommendation. Do not infer measurements or compatibility from photography or from a similar-looking fixture.

Prepare the Final Island Layout

After measuring, browse pendant lights or linear chandeliers, review available customization information, or contact Bling Lighting Studio with the island dimensions, ceiling height, junction-box locations, selected fixture dimensions, and room photos. The owner should confirm the final content and every product-specific statement before this existing-page update is manually published.
